An AC fan motor is the part that drives airflow in your air conditioner, either pulling warm air across the indoor coil or pushing heat away from the outdoor unit. When it fails, your AC stops cooling properly, runs noisily, or shuts down completely. This covers every motor type used in RAK homes, the most common faults, and real AED repair and replacement costs.

What Is an AC Fan Motor?

An AC fan motor is an electric motor that spins the fan blades inside your air conditioning system, moving air across the coils so the unit can absorb or release heat. Without it, your AC cannot circulate air, and cooling stops even if the compressor is still running.

How an AC Fan Motor Works

The motor receives electrical current and uses it to spin a rotor, which is connected to the fan blade shaft. In most home AC units in the UAE, the motor is single-phase and relies on a capacitor to generate enough torque to start spinning, then runs continuously at a fixed or variable speed, depending on the unit. Indoor motors turn the blower wheel that pushes cooled air into the room; outdoor motors turn the fan that pulls air across the condenser coil to release heat outside.

AC Fan Motor vs EC Motor Key Differences

A standard AC fan motor runs on alternating current at a fixed speed set by the power supply frequency. In contrast, an EC (electronically commutated) motor uses built-in electronics to run at variable speeds and adjust automatically to airflow needs. EC motors are more energy-efficient and quieter, but they cost more upfront and are mainly found in newer inverter-type and commercial systems. Most standard split and window units across RAK still use conventional AC fan motors because they are cheaper to replace and easier to source locally.

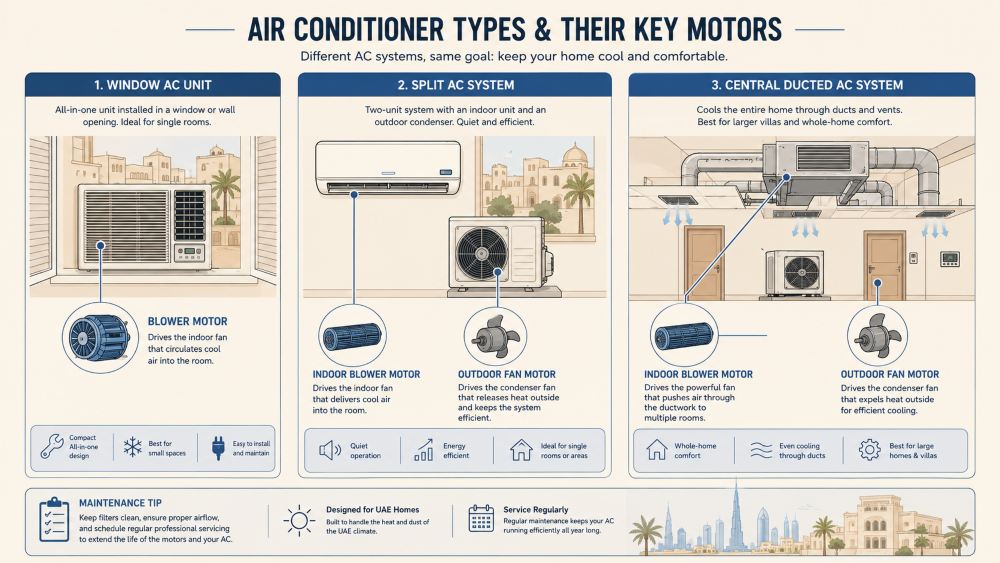

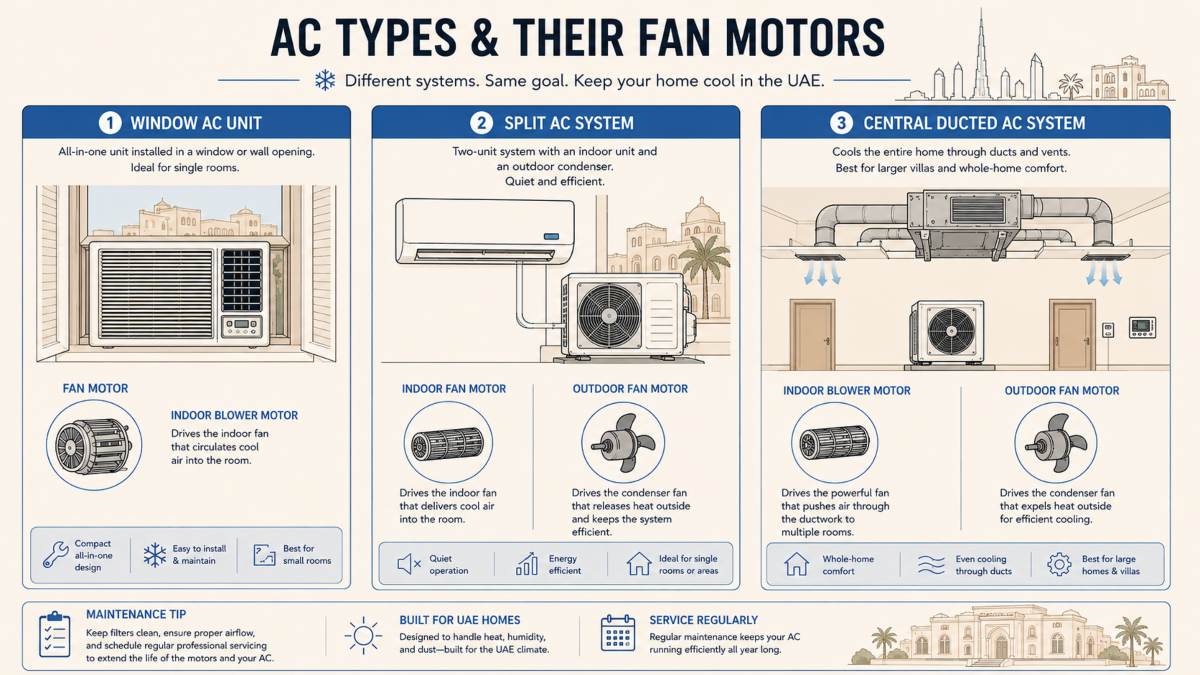

The fan motor in your AC depends entirely on the type of unit you own, and each type has a different replacement process and cost. Here are the four most common configurations found in RAK homes and buildings.

Window AC Motor

Window units use a single shaded-pole or PSC (permanently split capacitor) motor that drives both the indoor blower and the outdoor fan from one shaft, since both are housed in the same casing. This dual-function design means that a motor fault often affects both cooling and heat dissipation.

Split AC Motor

Split systems use two separate motors: an indoor blower motor in the wall-mounted or ducted unit and an outdoor condenser fan motor in the external unit. Because the units are physically separate, one motor can fail while the other continues to work normally, which is why a split AC may still blow air but no longer cool.

Central AC Motor

Central air conditioning systems use larger blower motors, often installed in a ducted air handler, designed to move air through an entire home’s ductwork rather than a single room. These motors run for longer hours daily and tend to need attention to the motor brush, bearings, or capacitor sooner due to the higher workload.

Single-Phase vs Induction Motors in Home AC Units

Nearly all residential AC fan motors in the UAE are single-phase induction motors, which use a capacitor to create a rotating magnetic field strong enough to start the motor from a standstill. Single-phase motors are preferred for home units because they run safely on standard household electrical supply. In contrast, three-phase motors are reserved for large commercial and industrial cooling systems, which fall outside the scope of typical residential AC servicing in RAK.

Key Components & Wiring

A fan motor cannot run without a capacitor and correctly connected wiring, and faults in either are a leading cause of motor failure that homeowners often mistake for a “dead motor.”

AC Motor Capacitor Role & Wiring

The capacitor stores and releases an electrical charge that gives the motor the extra push needed to start spinning and keeps it running smoothly afterward. A weak or swollen capacitor is one of the most common reasons an AC fan motor hums. Still, it does not turn, and replacing the capacitor (rather than the entire motor) often resolves the issue for a fraction of the cost.

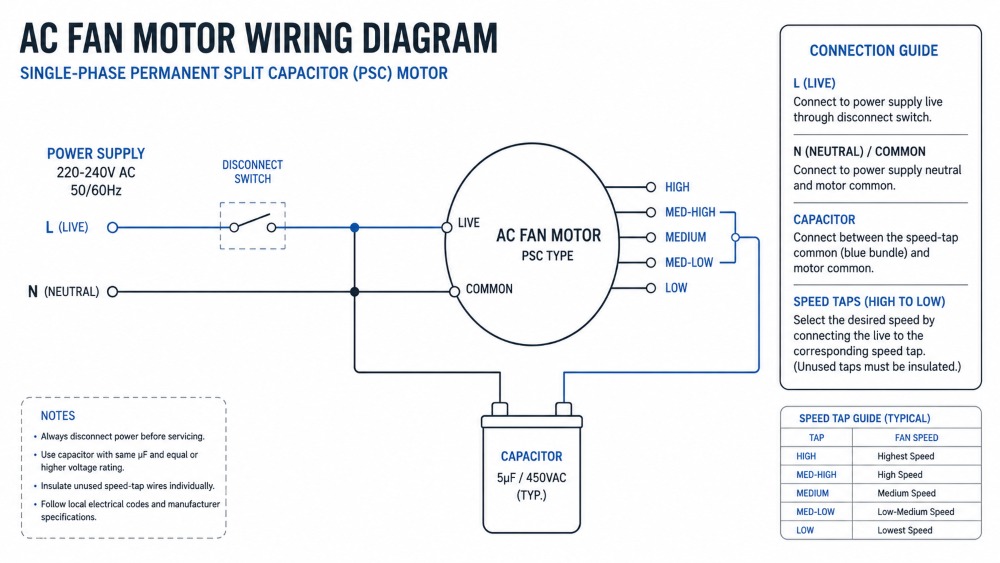

AC Fan Motor Wiring Diagram (Standard & 3-Speed)

A standard single-speed motor wiring diagram connects three wires: live, common, and capacitor, while a 3-speed motor adds separate speed-tap wires (typically labelled high, medium, and low) that route through the AC’s control board or speed selector switch. Incorrect wiring on 3-speed motors is a common DIY mistake, often causing the fan to run on only one speed or not start at all.

Motor Bush, Starter & Connection Points

The motor bush is the bearing that the rotor shaft spins inside, and worn bushes are a major cause of grinding or rattling noise as the shaft begins to wobble. The starter winding and connection terminals should also be checked for corrosion or loose contact, especially in coastal RAK areas such as Al Marjan Island and Mina Al Arab, where salt air accelerates terminal corrosion.

Common AC Fan Motor Problems

Most AC fan motor issues fall into three categories: unusual noise, complete failure to start, and reduced performance, and each points to a different underlying fault.

AC Fan Motor Making Noise | Causes

A grinding or rattling sound usually indicates worn motor bushes or bearings, while a humming sound with no fan movement suggests a failed capacitor or a jammed fan blade. A high-pitched squeal often indicates the motor is overheating internally and close to failure, and should not be ignored.

AC Fan Motor Not Working | Diagnostic Checklist

Check first whether the motor hums but doesn’t spin (capacitor fault), is completely silent (power or wiring fault), or spins freely by hand but won’t start on its own (bearing or winding fault). Testing the capacitor with a multimeter and inspecting wiring connections are the first two checks a technician performs before condemning the motor itself.

Signs You Need a Replacement vs Repair

If the issue is a faulty capacitor, loose wiring, or a worn bush, repair is usually sufficient and far cheaper. If the motor windings have burned out, the shaft is bent, or the motor is more than 8–10 years old and failing repeatedly, full replacement is the more cost-effective long-term option, since repeated repairs on an old motor rarely hold up in RAK’s heat.

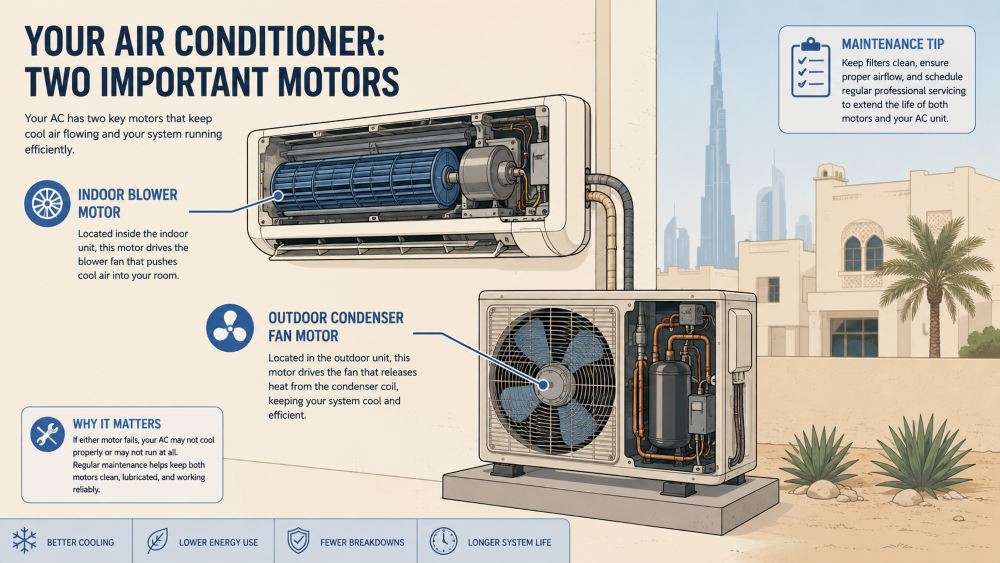

AC Fan Motor by Location: Indoor vs Outdoor

The location of the faulty motor changes both the symptoms you’ll notice and the urgency of the repair.

AC Condenser Fan Motor (Outdoor Unit)

The condenser fan motor pulls outside air across the hot coil to release heat; when it fails, the compressor can overheat and shut down to protect itself, so the AC may stop cooling entirely within minutes of the fan failing. Outdoor motors are also more exposed to dust, sand, and direct sun, all of which shorten their lifespan in RAK.

AC Blower Motor (Indoor Unit)

The indoor blower motor pushes cooled air into the room; a failure here usually means the AC runs but produces little or no airflow, even though the compressor and outdoor unit sound normal. This fault is often mistaken for low refrigerant, when in fact only the motor needs attention.

AC Motor Brand Comparison

Replacement motor cost and parts availability vary noticeably by brand, which affects both repair price and turnaround time in RAK.

Carrier, Daikin, and Gree motors are easiest to source locally due to their popularity in RAK installations. In contrast, Trane and Mitsubishi motors sometimes require ordering, which can extend repair time by a few days.

AC Fan Motor Repair & Replacement Cost in RAK

Repair costs depend on whether the fault is in the capacitor, bush, or the full motor, while replacement costs depend on the unit type and brand.

Repair Cost by AC Type (AED)

Motor Replacement Cost by AC Type (AED)

What Affects Pricing in RAK

RAK’s combination of high heat, humidity, and coastal sand exposure shortens motor lifespan compared to cooler climates, meaning motors here often need bush or capacitor attention 1–2 years earlier than the manufacturer’s general estimate. Units installed near the coast, in areas like Al Jazeera Al Hamra and Pacific Al Marjan Island face faster terminal corrosion, which can also slightly increase repair frequency and cost compared to inland properties.

How to Replace an AC Fan Motor (Step-by-Step Overview)

Replacing an AC fan motor involves isolating power, removing the fan blade, disconnecting and replacing the motor, then reconnecting wiring and the capacitor correctly before testing.

DIY Risks vs Calling a Professional

Incorrect capacitor wiring can immediately burn out a brand-new motor, and working inside an outdoor condenser unit carries electrical shock risk if power isn’t fully isolated. Given that a wrongly wired replacement motor is rarely covered under any warranty, most RAK homeowners find it safer and cheaper overall to book a technician rather than risk a second purchase.

Maintenance Tips to Extend Motor Life in RAK’s Climate

Schedule a capacitor and bush check once a year, especially before peak summer, and keep the outdoor unit’s surrounding area clear of sand and debris that strain the fan motor. Booking an Annual Maintenance Contract (AMC) ensures these checks happen automatically before motor wear turns into a full breakdown.

Conclusion

An AC fan motor is a small part with a big job, and when it fails, your entire cooling system suffers, whether you own a window unit, a split system, or a central ducted AC. Most faults trace back to one of three things: a worn capacitor, a damaged motor bush, or burnt-out windings, and each has a different repair path and cost. A faulty capacitor or bush is usually a quick, affordable fix. At the same time, burnt windings or a motor over 8–10 years old are better solved with a full replacement, especially given how RAK’s heat, humidity, and coastal sand shorten motor lifespan compared to cooler climates.

The cost difference between repair and replacement is significant, ranging from AED 80 for a capacitor swap to over AED 1,400 for a central AC motor replacement. Hence, an accurate diagnosis matters before any money is spent. Attempting a DIY fix carries real risk, since incorrect wiring can destroy a brand-new motor in seconds, and outdoor unit work can carry the risk of electrical shock if power isn’t properly isolated.

If your AC is making noise, blowing weak air, or has stopped cooling altogether, it’s worth having the motor inspected before the fault spreads to the compressor. Home Fix provides AC fan motor diagnosis, repair, and replacement across RAK, including Al Marjan Island, Mina Al Arab, Bab Al Bahr, and Al Riffa, with same-day service for most common brands. or call +971 52 511 2254 to get your AC running smoothly again.

Frequntly Asked Questions (FAQs)

What causes an AC fan motor to make noise?

Noise usually comes from worn motor bushes, a failing capacitor, or a loose fan blade or one that’s hitting an obstruction. Grinding sounds indicate bearing wear, while a humming sound without movement usually indicates a capacitor fault.

Should I repair or replace my AC fan motor?

Repair is the better option if the fault is a capacitor, loose wiring, or worn bush on a motor under 8 years old. Replacement makes more sense if the windings have burned out or the motor has failed more than once in a short period.

What is the average cost of AC fan motor repair in RAK?

Capacitor replacement typically costs AED 80–250 depending on AC type, while full motor repair ranges from AED 200–700. Replacement costs range from AED 250 for a window unit to AED 1,400 for central AC systems.

How long does an AC fan motor last in RAK’s climate?

Most AC fan motors last 8–12 years in moderate climates, but RAK’s heat, humidity, and coastal sand exposure can shorten this to 6–10 years, especially for outdoor condenser motors.

What are the signs of a failing AC motor capacitor?

A humming sound with no fan movement, the fan starting only when manually spun by hand, or visible bulging on the capacitor casing are the clearest signs. A multimeter test can confirm capacitor failure before replacing the full motor unnecessarily.
